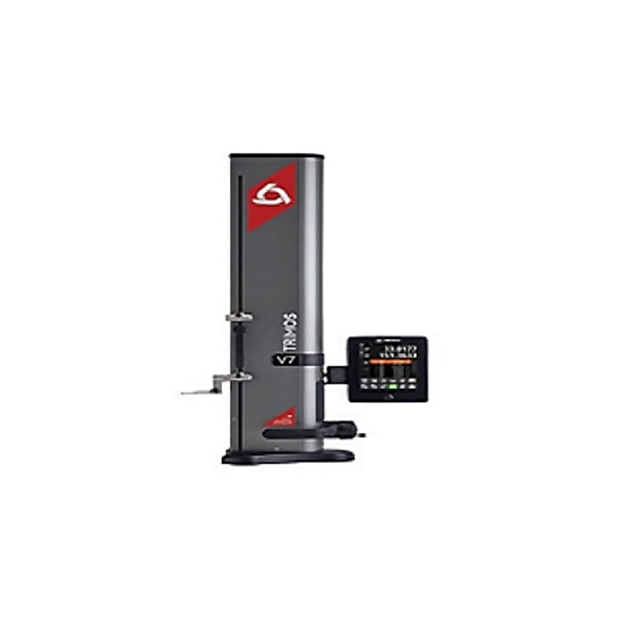

A 2D height gauge is an advanced version of a linear height measurement system. Traditional height gauges primarily measure one-dimensional (vertical) dimensions, while 2D models possess powerful data processing capabilities, allowing them to deduce geometric relationships in a planar coordinate system through vertical measurement. They are typically found in quality control (QA/QC) labs or precision parts manufacturing plants for inspecting:
Die parts: Precise hole distribution and step height.
Stamped parts: Bending height and center hole position in sheet metal parts.
Precision bearings: Rapid verification of inner and outer diameters and concentricity.
